The Binomial Square: A Simpler Model¶
The use of Montessori cubes is a great example of children naturally discovering patterns without needing prior knowledge of binomial identities. These patterns can be inferred and intuited by young children because they are inherent in the mathematical principles involved. We will review the Montessori-based binomial expansion1 using a 2D perspective.
The algebraic identity expansion for \( (a + b)^2 \) is:
This expression can be modeled geometrically using a square rather than a cube, representing the terms in a way that's easy to visualize.
1. Geometric Representation of \( (a + b)^2 \)¶

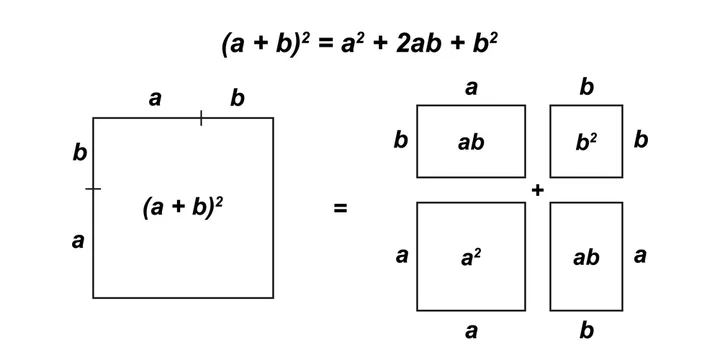

Figure 1: Bionomial Square Model
Imagine a large square with side length \( (a + b) \). The area of the square is \( (a + b)^2 \), which can be broken down into smaller squares and rectangles:
- One smaller square with side length \( a \), representing \( a^2 \).
- One smaller square with side length \( b \), representing \( b^2 \).
- Two rectangles with dimensions \( a \times b \), representing the two \( ab \) terms (since \( 2ab \) comes from the two identical rectangles).
Visual Layout¶
If you draw a large square with side length \( (a + b) \), you can split it as follows:
- Top-left corner: A square of side \( a \), with an area of \( a^2 \).
- Bottom-right corner: A square of side \( b \), with an area of \( b^2 \).
- Top-right and bottom-left sections: Two identical rectangles, each with dimensions \( a \times b \), representing the cross terms \( ab \). Since there are two of them, their combined area is \( 2ab \).
Thus, the total area of the large square is the sum of the areas of these smaller parts:
2. Simpler Model as Compared to the Montessori Binomial Cube¶
The binomial square is a more basic, two-dimensional version of the Montessori binomial cube, which represents \( (a + b)^3 \). While the cube breaks down the terms of the binomial expansion into cubes and rectangular prisms, the binomial square model works only with squares and rectangles, making it a simpler and more accessible introduction to the concept of binomial expansion.
3. Hands-on Representation for Children¶
For a hands-on Montessori-like experience for children, you can create physical cutouts representing the various parts of \( (a + b)^2 \):
- Cut out two smaller squares, one for \( a^2 \) and one for \( b^2 \).
- Cut out two rectangles representing the \( ab \) terms.
Children can manipulate these shapes, rearranging them to fit into the larger square. This gives them a visual and tactile understanding of how the parts of the binomial expansion fit together, just like they would with the binomial cube.
4. Pattern Recognition in the Binomial Square¶
Just like with the binomial cube, the binomial square introduces students to the idea of patterns in algebraic expansions. Specifically:
- The terms in \( (a + b)^2 \) follow the pattern \( 1, 2, 1 \), as seen in Pascal’s Triangle.
- The model helps students recognize that the cross terms \( ab \) appear twice, which leads to the coefficient \( 2ab \) in the expansion.
Conclusion: A Simpler Model for \( (a + b)^2 \)¶
The binomial square is a simpler, 2D version of the Montessori binomial cube, representing the expansion of \( (a + b)^2 \). It uses squares and rectangles to help children visualize and understand the binomial relationship, making it a great first step before progressing to the 3D binomial cube. By recognizing the geometric patterns and connecting them to the algebraic terms, students can begin to understand how binomial expansions work in a concrete, accessible way.
